Surge Protector with Voltage Protection

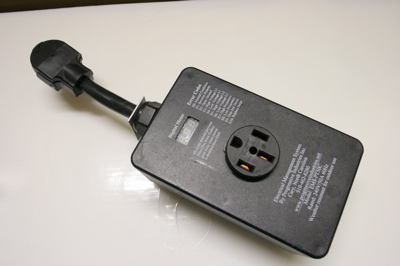

Progressive Industries PT50C
Their have been too many horror storries out there of voltage spikes to a busses electrical system. With replacement costs for Inverters and other electronics costing upwards of $12,000. Be it a lighting strike, transformer issue or even just crossed lines. This unit will guard your bus electrically and may save you some serious cash. If you encounter an E-10 error then it's time for a new unit as it's done it's job and taken a major hit.
Small enough that it's easy to carry to each campsite and connect. The constant display let's you know exactly the voltage coming from the pole and amps on each line.
If there is an issue, say excessive voltage, the unit will shut down power to the coach, then reconnect when the voltage is within limits.
Purchase Info - When I purchased this in May 2007 it was only $289. December of 2007 now lists at $369 from Tweety's.
High low voltage protection: Whenever source power fall below 104 Volts, or rise above 132 volts the EMS automatically shut down power to the RV. Once the AC source rises above 104-volts, or below the 132-volt level the time delay indicator flashes for the preset time and then automatically restores power to RV.
Time delay for A/C Compressor: Whenever source power is interrupted by the source or the EMS, due to a fault condition the built in time delay is activated, for 136 seconds.
3-Mode surge protection: This feature provides full surge protection L-N, L-N, L-G, L-G, L-L and N-G. Joule rating is 3560, response time of <1 nano second.
Surge Indicator: If ever a power surge damages the surge protector circuit within the EMS L-N, or L-G Digital display error code will read E-10. This is your indication that it needs to be replaced.
Reverse polarity protection: If source is a reverse polarity condition, the EMS will not allow power to the RV and the error code will read E1.
Open neutral protection: If the source has an open neutral condition the display will not light, and will not allow power to the RV.
Open ground protection: If source power has an open ground condition the EMS will read an error code of E2 and will not allow power to the RV.
AC Frequency Protection: If source power frequency deviants +/- 9 hertz from 60 cycles per second the EMS will shut down source power, and indicate an E7 or E8 error code on the digital display.
Accidental 220V protection: If 220 volts is detected when plugging into source power the EMS will not allow power to the RV. If this condition occurs while power is applied to the RV, the EMS shuts off power instantly. The display will read the voltage, and the appropriate error code.

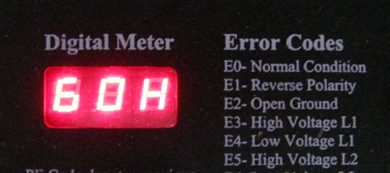

Integrated information panel: Scrolls continuously all of the power source information, voltage, current, frequency, error codes, and previous errors. Each reading is displayed for 2 seconds
Previous error code: This feature tells the user why the EMS previously interrupted to the RV. This is only displayed if an error actually occurs and goes away when power is disconnected.
Weather resistant: Can be exposed to elements, may not be submerged.
Microprocessor controlled: The computer, is driven by state of the art microprocessors that are programmed with software to drive the entire EMS.
Built in Lock Bracket: Allows the user to secure to power source to prevent theft.
5’ W x 161/2" L x 5" H, one year warranty

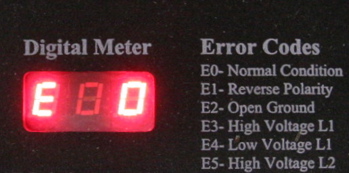

|Unit continuously displays line status.|

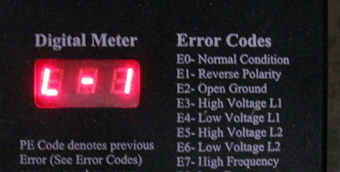

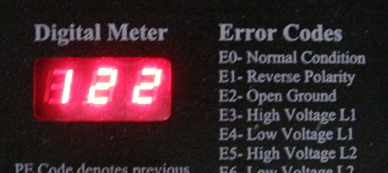

|Line 1 Volts|

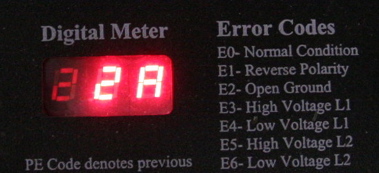

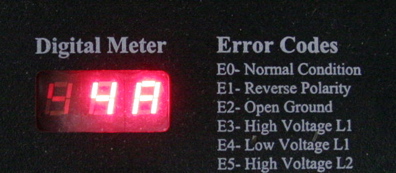

|Line 1 Amps in Use|

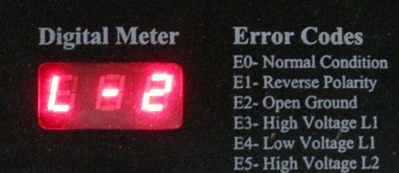

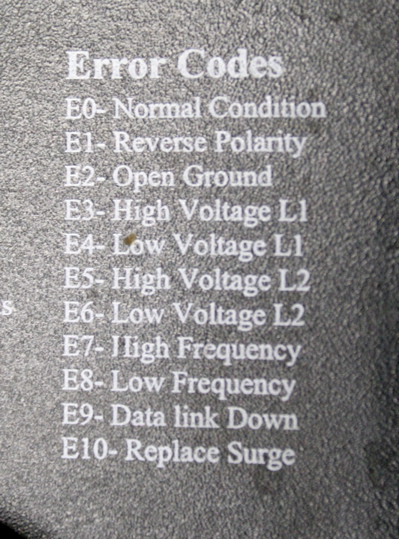

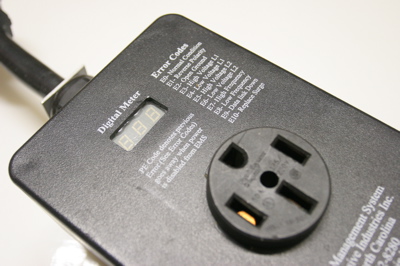

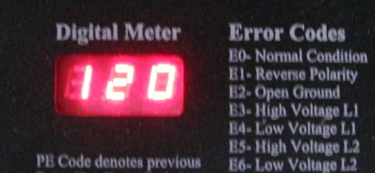

|LIne 2 Volts||The listing of the Error Codes as printed on the unit.|
|Line 2 Amps in Use|
|Error Code: Stays displayed until the unit is depowered. This error is Excessive Voltage on Line 1 (greater than 132 volts)|

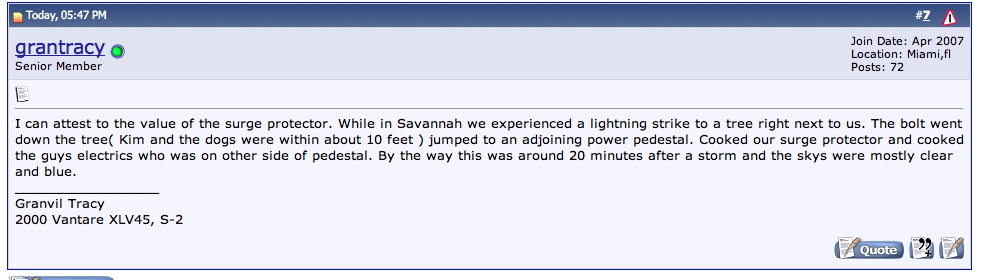

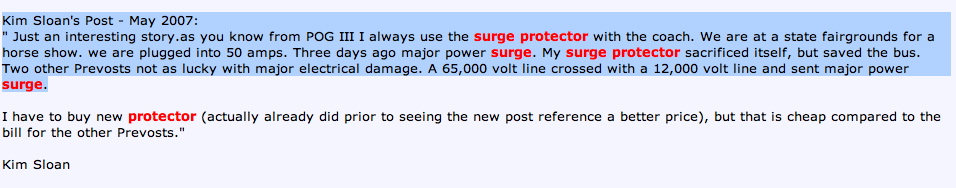

|Testimonials from POG.|
